Titanium Processing Center (TPC) is a Complete Stocking Distributor and Service Center of DOMESTIC / DFAR compliant material with original mill test certificates for complete traceability. TPC carries titanium flanges, elbows, stub ends, and pipe plugs stock in a variety of sizes that fit a wide range of specifications. In addition to DOMESTIC / DFAR compliant material, we also carry imported stock. You can be assured that our products will meet your needs.
Titanium Processing Center (TPC) serves the Aerospace, Power Generation, Marine, Oil & Gas, Medical, and Military industries. TPC is an ISO 9001 and AS9100 certified company.

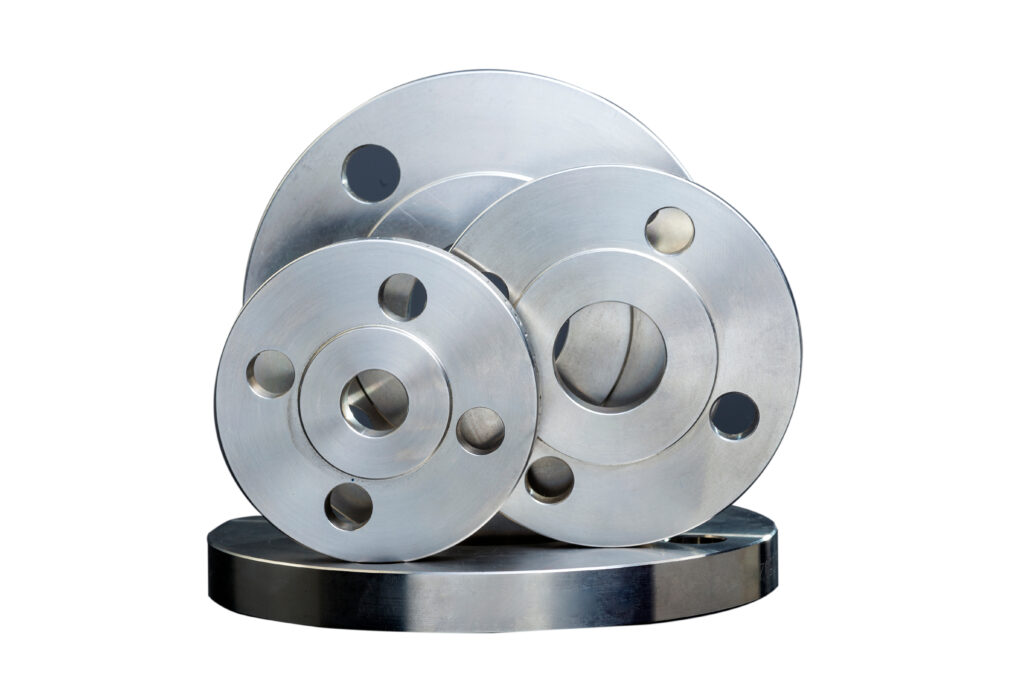

Titanium Processing Center offers blind flanges, slip-on flanges, week neck flanges and lap joint flanges from 1/2″ to 24″
Make sure you have everything you need for your next project with our high-quality titanium flanges. At Titanium Processing Center, we carry a variety of Grade 2 titanium blind, weld neck, and lap joint flanges that range in diameter from ½” to 24”. Dimensional tolerances meet ASTM B/SB 381. Whether you’re working on a production job that requires thousands of pieces or a project that only calls for one titanium pipe flange, we can help. Large or small requirements, you get what you need to complete your job!
Titanium flanges and fittings can be found in a wide variety of applications and settings. Their durability and strength make them invaluable for use in oil and gas pipelines, as well as in marine applications. They’re also frequently used in the assembly of automobiles, where they can hold pipes securely in place. We carry an extensive selection of products and can typically ship within a day or two. For a-typical items, inquire for price and lead times.
When you need flanges, we are the ideal source.
AVAILABLE SIZES FOR FLANGES GRADE 2
| Bore Dia. In Inches (B) | Length Through Hub in Inches (L) | Drilling And Boring | Weight in LBS | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nom Pipe Size (In.) | Flange DIa. (O) | Flange Thk. (T) | Hub Dia. At Base (X) | Raised Face Dia. (RF) | Hub Dia. At Weld Point (H) | Weld Neck | Slip On | Weld Neck | Slip On | No. Of Holes | Diameter Of Bolts (In.) | Dia. Of Bolt Circle (BC) | Weld Neck | Slip On | Blind |
| 1/2 | 3-1/2 | 7/16 | 1-13/16 | 1-3/8 | .84 | .62 | .88 | 1-7/8 | 5/8 | 4 | 1/2 | 2-3/8 | .94 | .94 | 126 |
| 3/4 | 3-7/8 | 1/2 | 1-1/2 | 1-11/16 | 1.05 | .82 | 1.09 | 2-1/16 | 5/8 | 4 | 1/2 | 2-3/4 | 1.26 | 1.26 | 1.50 |
| 1 | 4-1/4 | 9/16 | 1-15/16 | 2 | 1.32 | 1.05 | 1.36 | 2-3/16 | 11/16 | 4 | 1/2 | 3-1/8 | 1.56 | 1.56 | 1.70 |
| 1-1/4 | 4-5/8 | 5/8 | 2-5/16 | 2-1/2 | 1.66 | 1.61 | 1.95 | 2-7/16 | 7/8 | 4 | 1/2 | 3-1/2 | 1.88 | 1.88 | 1.88 |
| 1-1/2 | 5 | 11/16 | 2-9/16 | 2-7/8 | 1.90 | 1.61 | 1.95 | 2-7/16 | 7/8 | 4 | 1/2 | 3-7/8 | 2.50 | 2.50 | 2.50 |
| 2 | 6 | 3/4 | 3-9/16 | 3-5/8 | 2.38 | 2.07 | 2.44 | 2-1/2 | 1 | 4 | 5/8 | 4-3/4 | 3.76 | 3.31 | 2.50 |
| 2-1/2 | 7 | 7/8 | 3-9/16 | 4-1/8 | 2.88 | 2.47 | 2.94 | 2-3/4 | 1-1/8 | 4 | 5/8 | 5-1/2 | 5.02 | 4.37 | 4.05 |
| 3 | 7-1/2 | 15/16 | 4-1/4 | 5 | 3.5 | 3.07 | 3.57 | 2-3/4 | 1-3/16 | 4 | 5/8 | 6 | 6.26 | 5.32 | 5.63 |
| 3-1/2 | 8-1/2 | 15/16 | 4-13/16 | 5-1/2 | 4.00 | 3.55 | 4.07 | 2-13/16 | 1-1/4 | 8 | 5/8 | 7 | 7.37 | 6.87 | 8.45 |
| 4 | 9 | 15/16 | 5-5/16 | 6-3/16 | 4.50 | 4.03 | 4.57 | 3 | 1-5/16 | 8 | 5/8 | 7-1/2 | 9.40 | 8.13 | 10.75 |
| 5 | 10 | 15/16 | 6-7/16 | 7-5/16 | 5.56 | 5.05 | 5.66 | 3-1/2 | 1-7/16 | 8 | 3/4 | 8-1/2 | 12.00 | 9.40 | 12.00 |
| 6 | 11 | 1 | 7-9/16 | 8-1/2 | 6.63 | 6.07 | 6.72 | 3-1/2 | 1-9/16 | 8 | 3/4 | 9-1/2 | 15.00 | 12.25 | 17.00 |
| 8 | 13-1/2 | 1-1/8 | 9-11/16 | 10-5/8 | 8.63 | 7.98 | 8.72 | 4 | 1-3/4 | 8 | 3/4 | 11-3/4 | 24.50 | 18.25 | 28.75 |
| 10 | 16 | 1-3/16 | 12 | 12-3/4 | 10.75 | 10.02 | 10.88 | 4 | 1-15/16 | 12 | 7/8 | 14-1/4 | 32.50 | 25.50 | 42.50 |
| 12 | 19 | 1-1/4 | 14-3/8 | 15 | 12.75 | 12.00 | 12.88 | 4-1/2 | 2-3/16 | 12 | 7/8 | 17 | 50.00 | 38.75 | 67.00 |
| 14 | 21 | 1-3/8 | 15-3/4 | 16-1/4 | 14.00 | 13.25 | 14.14 | 5 | 2-1/4 | 12 | 1 | 18-3/4 | 62.25 | 52.00 | 80.00 |
| 16 | 23-1/2 | 1-7/16 | 18 | 18-1/2 | 16.00 | 15.25 | 16.16 | 5 | 2-1/2 | 16 | 1 | 21-1/4 | 78.00 | 57.00 | 103.00 |
| 18 | 25 | 1-9/16 | 19-7/8 | 21 | 18.00 | 17.25 | 18.18 | 5-1/2 | 2-11/16 | 16 | 1-1/8 | 22-3/4 | 86.00 | 74.00 | 127.00 |
| 20 | 27-1/2 | 1-11/16 | 22 | 23 | 20.00 | 19.25 | 20.20 | 5-11/16 | 2-7/8 | 20 | 1-1/8 | 25 | 104.00 | 94.00 | 166.00 |
| 24 | 32 | 1-7/8 | 26-1/8 | 27-1/4 | 24.00 | 23.25 | 24.25 | 6 | 3-1/4 | 20 | 1-1/4 | 29-1/2 | 159.00 | 128.00 | 251.00 |

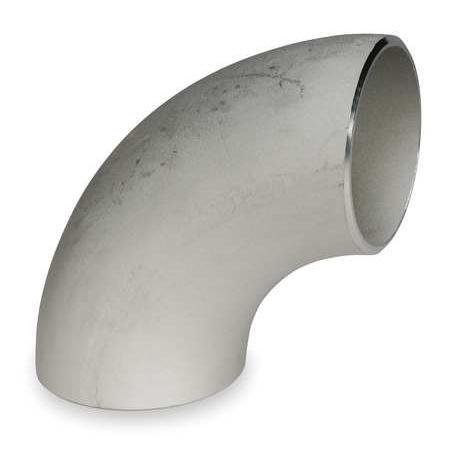

Titanium Processing Center offers a wide range of commercially pure Gr. 2 titanium elbows including both 45 and 90 with a long and short radii. They come in a range of diameters and S10 and S40 thickness to fit your pipes and complete your project.
Typically used for joining sections of pipe at an angle, these metal elbows can be found in various applications. They are commonly used in oil and gas pipelines, as well as in chemical processing equipment and ventilation systems. Their exceptional durability combined with their availability in wide range of sizes makes titanium elbows highly versatile and useful in many high-stress environments.
We are a fully stocked distributor and constantly replenish our inventory to meet the quick-turn requirements of our customers.
When you need elbows, we are the ideal source.
AVAILABLE RANGE OF DIAMETERS IN STOCK
| Nom. Pipe Size In Inches | Outside Diameter (OD) | Center To Face (A) | S10 | S40 | ||||
|---|---|---|---|---|---|---|---|---|
| Wall Thickness (T) | Inside Diameter (ID) | Approx. Weight In LBS | Wall Thickness (T) | Inside Diameter (ID) | Approx. Weight In LBS | |||
| 1/2 | .840 | 1-1/2 | .083 | .674 | .08 | .109 | .622 | .10 |
| 3/4 | 1.050 | 1-1/8 | .083 | .884 | .09 | .113 | .824 | .11 |
| 1 | 1.315 | 1-1/2 | .109 | 1.097 | .17 | .133 | 1.049 | .20 |
| 1-1/4 | 1.660 | 1-7/8 | .109 | 1.442 | .29 | .140 | 1.380 | .32 |
| 1-1/2 | 1.900 | 2-1/4 | .109 | 1.682 | .39 | .145 | 1.610 | .50 |
| 2 | 2.375 | 3 | .109 | 2.157 | .65 | .154 | 2.067 | .89 |
| 2-1/2 | 2.875 | 3-3/4 | .120 | 2.635 | 1.08 | .203 | 2.469 | 1.72 |
| 3 | 3.500 | 4-1/2 | .120 | 3.260 | 1.54 | .216 | 3.068 | 2.75 |
| 4 | 4.500 | 6 | .120 | 4.260 | 2.72 | .237 | 4.026 | 5.26 |
| 6 | 6.625 | 9 | .134 | 6.357 | 6.86 | .280 | 6.065 | 13.75 |
| 8 | 8.625 | 12 | .148 | 8.329 | 13.50 | .322 | 7.981 | 27.00 |
| 10 | 10.750 | 15 | .165 | 10.420 | 25.00 | .365 | 10.020 | 48.50 |
| 12 | 12.750 | 18 | .180 | 12.390 | 34.00 | .375 | 12.000 | 75.00 |
| 14 | 14.000 | 21 | .188 | 13.624 | 46.00 | .375 | 13.250 | 89.00 |
| 16 | 16.000 | 24 | .188 | 15.264 | 60.00 | .375 | 15.250 | 116.00 |
| 18 | 18.000 | 27 | .188 | 17.624 | 75.00 | .375 | 17.250 | 154.00 |
| 20 | 20.000 | 30 | .218 | 19.564 | 126.00 | .375 | 19.250 | 189.00 |
| 24 | 24.000 | 36 | .250 | 23.500 | 177.00 | .375 | 23.250 | 265.00 |

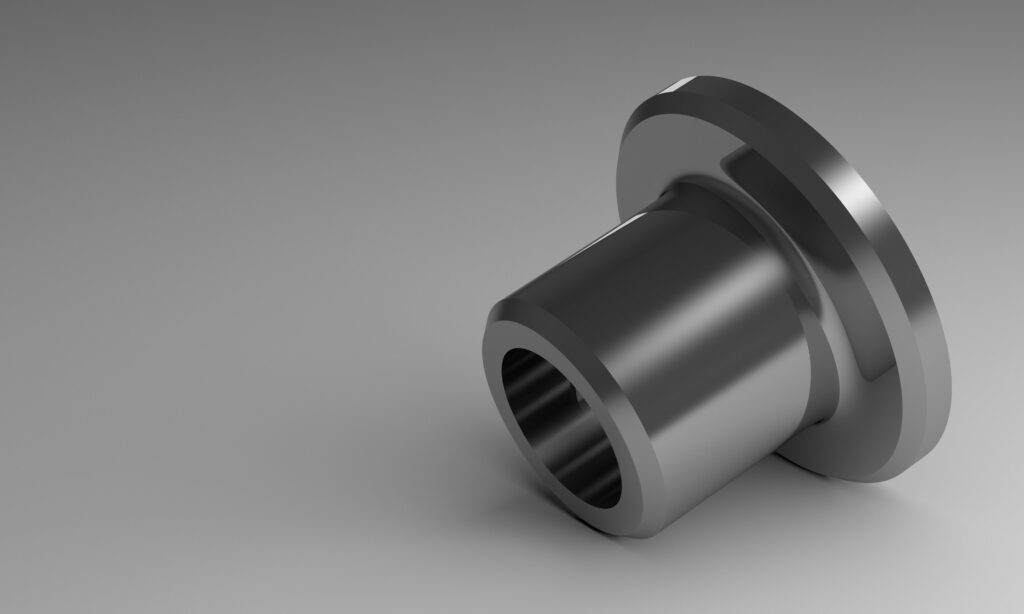

Titanium Stub Ends FOR SALE at Titanium Processing Center
1/2″ through 24″
You can easily finish your pipes with our range of titanium pipe stub ends. At Titanium Processing Center we are committed to providing high quality products that have been manufactured to meet your exact needs. The accompanying chart shows the details of the stubs we keep in stock, which range from 1/2” through 24”. No matter what the size of your project, we can help you get the parts you need. These stubs offer quality and convenience while eliminating leakage with a tight seal.
By constantly updating our inventory we are able to offer you the products you need when you need them. We focus on maintaining a tight delivery schedule, and most in-stock items will ship on the same or the next day. If you require some of our value added services, we can still get most of these products shipped within 24 hours. There are no minimum order requirements, so whether you need a single stub end or a thousand, we can help.
AVAILABLE SIZES FOR TITANIUM STUB ENDS:
| S 10 | S 40 | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Length (F) | Approx. Wt. in LBS. | Approx. Wt. in LBS. | |||||||||||||
| Nom. Pipe Sine (In.) | Outside Dia. (O) | Lap Thk. (G) | Type A Radius (R) | MSS Short | ANSI Long | Inside Dia. (ID) | Wall Thk. (T) | Lap Thl. (t) | MSS Short | ANSI Long | Inside Dia. (ID) | Wall Thk. (T) | Lap Thk. (t) | MMS Short | ANSI Long |
| 1/2 | .840 | 1-3/8 | 1/8 | 2 | 3 | .674 | .083 | .095 | .09 | .12 | .622 | .109 | .109 | .11 | .15 |
| 3/4 | 1.050 | 1-11/16 | 1/8 | 2/16 | 3 | .884 | .083 | .097 | .12 | .16 | .824 | .113 | .113 | .15 | .21 |
| 1 | 1.315 | 2 | 1/8 | 2 | 4 | 1.097 | .109 | .120 | .20 | .33 | 1.049 | .133 | .133 | .22 | .39 |
| 1-1/4 | 1.660 | 2-1/2 | 3/16 | 2 | 4 | 1.442 | .109 | .124 | .28 | .45 | 1.380 | .140 | .140 | .32 | .55 |
| 1-1/2 | 1.900 | 2-7/8 | 1/4 | 2 | 4 | 1.628 | .109 | .126 | .32 | .52 | 1.610 | .145 | .145 | .39 | .68 |
| 2 | 2.375 | 3-5/8 | 5/16 | 2-1/2 | 6 | 2.157 | .109 | .130 | .54 | .98 | 2.067 | .154 | .154 | .77 | 1.29 |
| 2-1/2 | 2.875 | 4-1/8 | 5/16 | 2-1/2 | 6 | 2.635 | .120 | .156 | .71 | 1.30 | 2.469 | /203 | .203 | 1.01 | 1.194 |
| 3 | 3.500 | 5 | 3/8 | 2-1/2 | 6 | 3.260 | .120 | .161 | .92 | 1.65 | 3.068 | .216 | .216 | 1.43 | 2.66 |
| 3-1/2 | 4.000 | 5-1/2 | 3/8 | 3 | 6 | 3.760 | .120 | .165 | 1.09 | 1.80 | 3.548 | .226 | .226 | 2.05 | 3.37 |
| 4 | 4.500 | 6-3/16 | 7/16 | 3 | 6 | 4.260 | .120 | .169 | 1.37 | 2.18 | 4.026 | .237 | .237 | 2.36 | 3.90 |
| 5 | 5.563 | 7-5/16 | 1/16 | 3 | 8 | 5.295 | .134 | .186 | .186 | 3.72 | 5.047 | .258 | .258 | 3.52 | 6.79 |
| 6 | 6.625 | 8-1/2 | 1/2 | 3-1/2 | 8 | 6.357 | .124 | .194 | 2.72 | 5.06 | 6.065 | .280 | .280 | 4.80 | 8.68 |
| 8 | 8.625 | 10-5/8 | 1/2 | 4 | 8 | 8.329 | .148 | .218 | 4.06 | 6.63 | 7.981 | .322 | .322 | 7.65 | 13.50 |
| 10 | 10.750 | 12-3/4 | 1/2 | 5 | 10 | 10.420 | .165 | .245 | 6.46 | 11.00 | 10.020 | .365 | .365 | 12.75 | 22.50 |
| 12 | 12.750 | 15 | 1/2 | 6 | 10 | 12.390 | .180 | .260 | 10.25 | 15.00 | 12.000 | .375 | .375 | 18.00 | 28.00 |
| 14 | 14.000 | 16-1/4 | 1/2 | 6 | 12 | 13.624 | .188 | .375 | 13.75 | 21.75 | 13.250 | .375 | .375 | 27.50 | 36.00 |
| 16 | 16.000 | 18-1/2 | 1/2 | 6 | 12 | 15.624 | .188 | .375 | 16.00 | 25.00 | 15.250 | .375 | .375 | 26.00 | 42.00 |
| 18 | 18.000 | 21 | 1/2 | 6 | 12 | 17.624 | .188 | .375 | 22.00 | 32.00 | 17.250 | .375 | .375 | 34.50 | 56.50 |
| 20 | 20.000 | 23 | 1/2 | 6 | 12 | 19.564 | .218 | .375 | 27.50 | 40.75 | 19.250 | .375 | .375 | 38.00 | 62.00 |
| 24 | 24.000 | 27-1/4 | 1/2 | 6 | 12 | 23.50 | .250 | .375 | 34.50 | 52.80 | 23.250 | .375 | .375 | 48.50 | 79.50 |
Half Coupling, Square Head Plug, Hexagon Head Plug

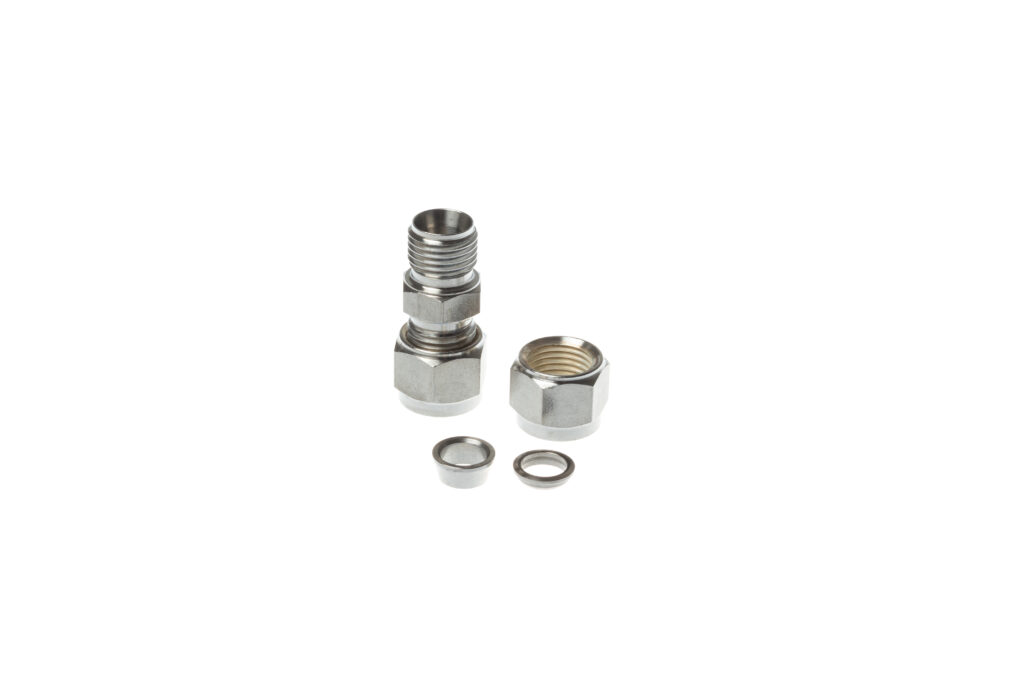

Titanium Processing Center offers a wide range of Threaded titanium pipe fittings and Pipe Plugs in stock so we can ship the exact parts you need, when you need them. We are committed to providing great prices and fast shipping times on all orders. Large or small requirements, you can get as many or as few as the project demands.
Our threaded pipe fittings (NPT), plugs, and other hardware are used to join pipes in numerous applications across a broad range of industries. They can be found in oil and gas pipelines, papermills, chemical processing plants, desalination/marine, as well as in medical equipment and aerospace machinery. No matter the application, these titanium fittings are highly valued for their strength and durability. The fact that they’re available in a wide range of sizes also makes them extremely versatile.
When you need Titanium Fittings we are the ideal source.
AVAILABLE SIZES FOR TITANIUM PIPE FITTINGS AND PIPE PLUGS:
| Nom. Pipe Size In Inches (B) | Common Diameter | Coupling (A) | Half Coupling (C) | CAP (D) |
|---|---|---|---|---|
| 1/8 | 3/4 | 1-1/4 | 5/8 | 3/4 |
| 1/4 | 3/4 | 1-3/8 | 11/16 | 1 |
| 3/8 | 7/8 | 1-1/2 | 3/4 | 1 |
| 1/2 | 1-1/8 | 1-7/8 | 15/16 | 1-1/4 |
| 3/4 | 1-3/8 | 2 | 2 | 1-7/16 |
| 1 | 1-3/4 | 2-3/8 | 1-3/16 | 1-5/8 |
| 1-1/4 | 2-1/4 | 2-5/8 | 1-5/16 | 1-3/4 |
| 1-1/2 | 2-1/8 | 3-1/8 | 1-9/16 | 1-3/4 |
| 2 | 3 | 3-3/8 | 1-11/16 | 1-7/8 |
FOR A QUICK ONLINE ORDER FOR GR 5 OR GR 2 MATERIAL, PLEASE CLICK HERE
DO YOU HAVE ANY QUESTIONS? FOR ALL TITANIUM GRADES PER AMS, ASTM, MIL-T, ASME SPECIFICATIONS, DFAR COMPLIANT, OR IMPORTED MATERIAL, PLEASE CONTACT TITANIUM PROCESSING CENTER FRIENDLY SALES TEAM AT 888-771-9449, SEND AN E-MAIL, OR SEND US AN INSTAQUOTE
